The Unsung Hero of Composites: A Deep Dive into How Fiberglass Roving is Made

In the world of advanced composites, materials like carbon fiber often steal the spotlight. But behind nearly every strong, durable, and lightweight fiberglass product—from boat hulls and wind turbine blades to automotive parts and swimming pools—lies a fundamental reinforcement material: fiberglass roving. This versatile, continuous strand of glass filaments is the workhorse of the composites industry. But how is this critical material manufactured?

This article provides an in-depth look at the sophisticated industrial process of creating fiberglass roving, from raw sand to the final spool ready for shipment.

What is Fiberglass Roving?

Before diving into the “how,” it’s essential to understand the “what.” Fiberglass roving is a collection of parallel, continuous glass filaments gathered together into a single, untwisted strand. It’s typically wound onto a large spool or forming package. This structure makes it ideal for processes where high strength and fast wet-out (saturation with resin) are crucial, such as:

–Pultrusion: Creating constant cross-section profiles like beams and bars.

–Filament Winding: Building pressure vessels, pipes, and rocket motor casings.

–Chopped Strand Mat (CSM) Production: Where the roving is chopped and randomly distributed into a mat.

–Spray-Up Applications: Using a chopper gun to apply resin and glass simultaneously.

The key to its performance lies in its continuous nature and the pristine quality of the individual glass filaments.

The Manufacturing Process: A Journey from Sand to Spool

The production of fiberglass roving is a continuous, high-temperature, and highly automated process. It can be broken down into six key stages.

Stage 1: Batching – The Precise Recipe

It may be surprising, but fiberglass starts with the same mundane material as a beach: silica sand. However, the raw materials are meticulously selected and mixed. This mixture, known as the “batch,” primarily consists of:

–Silica Sand (SiO₂): The primary glass former, providing the structural backbone.

–Limestone (Calcium Carbonate): Helps stabilize the glass.

–Soda Ash (Sodium Carbonate): Lowers the melting temperature of the sand, saving energy.

–Other Additives: Minor amounts of minerals like borax, clay, or magnesite are added to impart specific properties such as enhanced chemical resistance (as in E-CR glass) or electrical insulation (E-glass).

These raw materials are precisely weighed and blended into a homogeneous mixture, ready for the furnace.

Stage 2: Melting – The Fiery Transformation

The batch is fed into a massive, natural gas-fired furnace operating at staggering temperatures of approximately 1400°C to 1600°C (2550°F to 2900°F). Inside this inferno, the solid raw materials undergo a dramatic transformation, melting into a homogeneous, viscous liquid known as molten glass. The furnace operates continuously, with new batch added at one end and molten glass drawn from the other.

Stage 3: Fiberization – The Birth of Filaments

This is the most critical and fascinating part of the process. The molten glass flows from the furnace forehearth into specialized equipment called a bushing. A bushing is a platinum-rhodium alloy plate, resistant to extreme heat and corrosion, containing hundreds or even thousands of fine holes, or tips.

As the molten glass flows through these tips, it forms tiny, steady streams. These streams are then rapidly cooled and mechanically drawn down by a high-speed winder located far below. This drawing process attenuates the glass, pulling it into incredibly fine filaments with diameters typically ranging from 9 to 24 micrometers—thinner than a human hair.

Stage 4: Sizing Application – The Crucial Coating

Immediately after the filaments are formed, but before they touch each other, they are coated with a chemical solution known as sizing or a coupling agent. This step is arguably as important as the fiberization itself. The sizing performs several vital functions:

–Lubrication: Protects the fragile filaments from abrasion against each other and the processing equipment.

–Coupling: Creates a chemical bridge between the inorganic glass surface and the organic polymer resin, dramatically improving adhesion and composite strength.

–Static Reduction: Prevents the buildup of static electricity.

–Cohesion: Binds the filaments together to form a coherent strand.

The specific formulation of the sizing is a closely guarded secret by manufacturers and is tailored for compatibility with different resins (polyester, epoxy, vinyl ester).

Stage 5: Gathering and Strand Formation

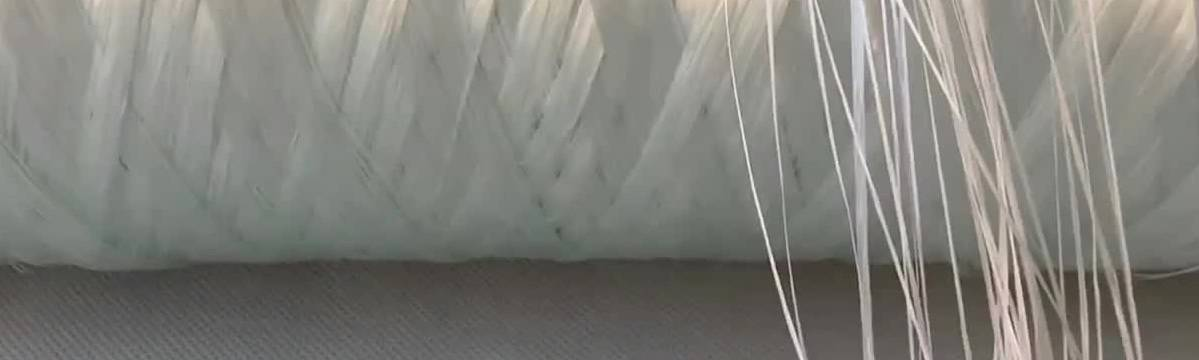

The hundreds of individual, sized filaments now converge. They are gathered together over a series of rollers, known as gathering shoes, to form a single, continuous strand—the nascent roving. The number of filaments gathered determines the final “tex” or weight-per-length of the roving.

Stage 6: Winding – The Final Package

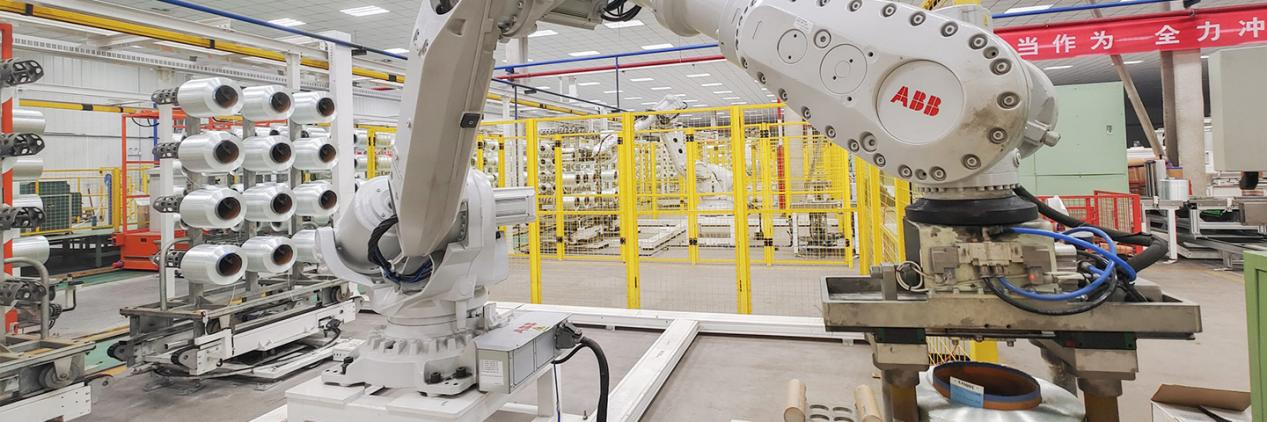

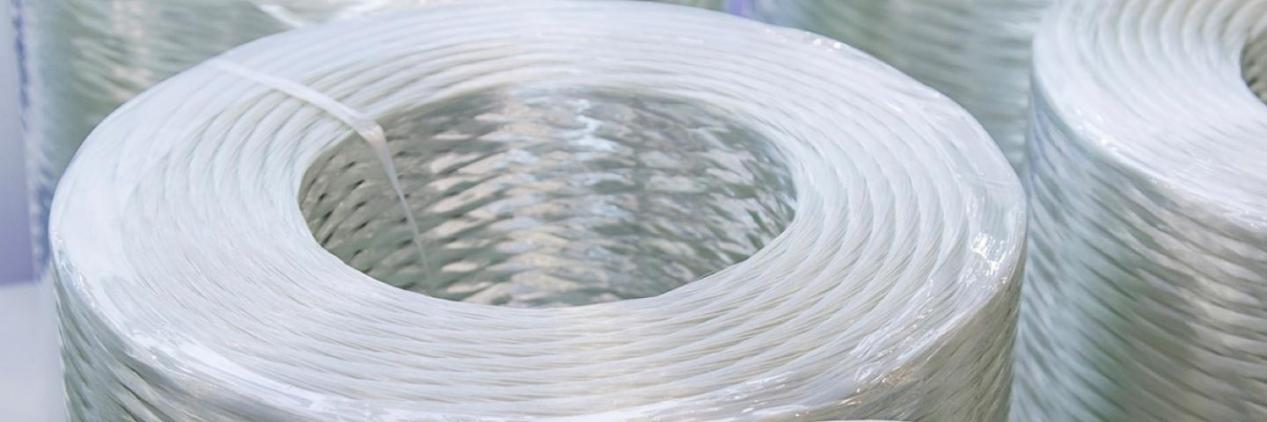

The continuous strand of roving is finally wound onto a rotating collet, creating a large, cylindrical package called a “doff” or “forming package.” The winding speed is incredibly high, often exceeding 3,000 meters per minute. Modern winders use sophisticated controls to ensure the package is wound evenly and with the correct tension, preventing tangles and breaks in downstream applications.

Once a full package is wound, it is doffed (removed), inspected for quality, labeled, and prepared for shipment to fabricators and composite manufacturers around the world.

Quality Control: The Unseen Backbone

Throughout this entire process, rigorous quality control is paramount. Automated systems and lab technicians constantly monitor variables such as:

–Filament diameter consistency

–Tex (linear density)

–Strand integrity and freedom from breaks

–Sizing application uniformity

–Package build quality

This ensures that every spool of roving meets the exacting standards required for high-performance composite materials.

Conclusion: An Engineering Marvel in Everyday Life

The creation of fiberglass roving is a masterpiece of industrial engineering, transforming simple, abundant materials into a high-tech reinforcement that shapes our modern world. The next time you see a wind turbine gracefully turning, a sleek sports car, or a rugged fiberglass pipe, you’ll appreciate the intricate journey of innovation and precision that began with sand and fire, resulting in the unsung hero of composites: fiberglass roving.
