Carbon fiber changes modern engineering; its strength-to-weight ratio is better than steel and aluminum. Whether you are in aerospace, a drone hobbyist, or an architect, it is very important to choose a proper carbon fiber sticks for the integrity of projects.
In this article, we will explore the world of pultruded carbon fiber rods, and explore the difference between solid carbon fiber rods and hollow rods, and then we will provide the specific diameters such as 2 mm, 3 mm, 5 mm, and 8 mm.
1. What are CFRP Rods?
CFRP rod is the abbreviation of carbon fiber rod. This is a composite material, which is composed of carbon fiber (the reinforcement) and polymer resin (the matrix, usually epoxy or UPR).
Why Choose Carbon Fiber?
Lightweight: the density of carbon fiber is less than that of aluminum and steel.
High Tensile Strength: The tensile strength of carbon fiber is ten times that of steel.
Corrosion Resistance: Different from steel, it can't rust or corrode.
Low Thermal Expansion: It is properly suited for the big precision instruments
2. The Scientific Principles of Pultruded Carbon Fiber Rods
Most high-quality carbon fiber rods are made by a process called pultrusion.
The Pultrusion Process:
Fiber Tensioning: Carbon fiber yarns are pulled from creels.
Resin Impregnation: fiber falls into the bath of resin (typically epoxy or vinyl ester)
Pre-forming: putting the impregnated fiber into the shape you need.
Heated Die Curing: The material passes through the steel mold and the resin polymer in the mold.
Cutting: cutting the carbon fiber sticks to a specific length.
This process makes sure the wonderful array of fibers is longitudinal; it makes the rod have the biggest stiffness and strength.
3. Shapes : Square vs. Hollow vs. Threaded
Depending on your mechanical requirements, the shape of the rod matters as much as the material.
Carbon Fiber Square Rod
A carbon fiber square rod offers flat surfaces that are easier to bond and join than round profiles. They are frequently used in:
RC aircraft fuselage reinforcement.
Robotic arms and frames.
Structural bracing in architectural models.
Hollow Carbon Fiber Rod
When weight is the absolute priority, a hollow carbon fiber rod (often called carbon fiber tubing) is the gold standard. By removing the neutral axis material (the center), you maintain high bending stiffness while significantly reducing weight. These are perfect for:
Kite frames.
Telescoping poles.
Lightweight camera gimbals.
Carbon Fiber Threaded Rod
Most carbon fiber rods are smooth on the surface, but carbon fiber threaded rods can be mechanically fastened with a nut. These types of rods are non-conductive and transparent to X-rays, so they are totally important for professional medical and laboratory equipment.

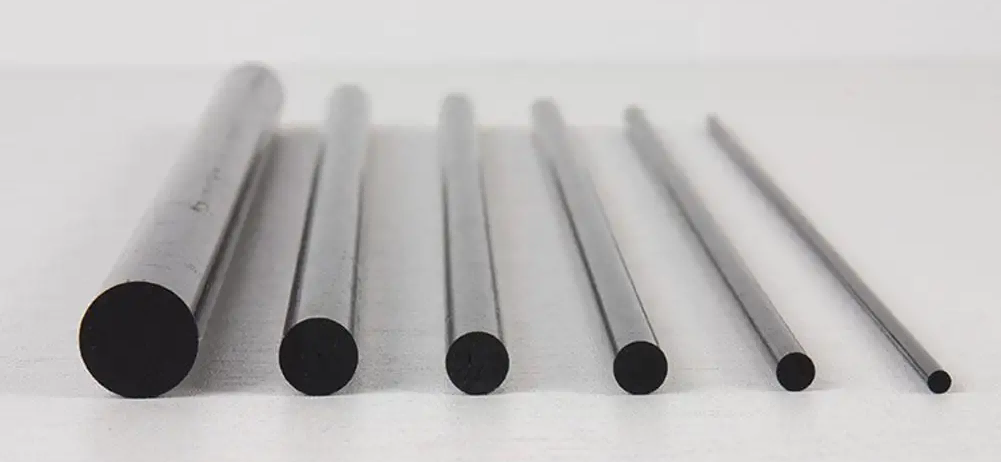

4. Standard Sizing Guide: Finding Your Fit
When looking to buy carbon fiber rods, the diameter is the most searched specification.The specific sizes and applications are as follows:
|
Diameter |
Common Use Cases |
Structural Property |
|
2mm carbon fiber rod |
RC Planes, micro-drones, architectural modeling. |
High flexibility, ultra-light. |
|
3mm carbon fiber rod |
Kite struts, landing gear for small drones. |
Balance of flex and strength. |
|
4mm carbon fiber rod |
Tent poles, sports equipment reinforcement. |
Moderate stiffness. |
|
5mm carbon fiber rod |
Industrial sensors, musical instrument necks. |
High resistance to bending. |
|
8mm carbon fiber rod |
Heavy-duty bracing, DIY furniture, UAV frames. |
Structural grade rigidity. |
5. How To Purchase The High Quality Carbon Fiber Rods
It is difficult to find “carbon fiber rods near me” because the local hardware stores are few stock of the high-modulus composites. To make sure of getting the best performance, you can find the suppliers on the internet.
Buyer’s Checklist: What to Look for Before You Pay
Don’t just click "buy" on the first carbon fiber rods for sale that pop up. There’s a lot of junk out there. If you want a rod that won’t fail under pressure, keep these four things in mind:
Don't skimp on the fiber: A cheap rod is usually mostly resin and very little "muscle." You’re looking for a fiber volume fraction of at least 60% to 70%. If the manufacturer won’t give you that number, they’re probably cutting corners.
The "Epoxy" rule: Always check the resin type. Polyester is cheap and brittle. For anything that needs to last, you want epoxy resin. It handles heat better, bonds tighter, and won’t go soft on you when things get tough.
Watch for the "Banana" effect: In precision work, straightness tolerance is everything. A low-quality pultruded carbon fiber rod can sometimes come with a slight "bow" or twist. If you’re building a drone or a CNC component, even a millimeter of curve is a deal-breaker.
Finish matters: If you need it to look sexy for a consumer product, go with a "pul-wrapped" or 3K woven finish. But if it’s just for hidden structural support, a standard pultruded matte finish is usually cheaper and does the job just fine.
6. Cutting and Bonding of Carbon Fiber Sticks
The technology required to process carbon fiber is different from that required to process wood or metal.
How to Cut Without Making a Mess First thing’s first: Carbon fiber is a blade-killer. If you try to use a regular hacksaw on a 3mm carbon fiber rod, you’ll ruin the blade in seconds and end up with a splintered mess. Your best bet is a diamond-coated blade or a high-speed Dremel with a cutoff wheel.
A word of caution: That fine black dust? It’s nasty. It’ll irritate your skin and lungs like crazy. But here’s the real kicker—it’s conductive. If that dust drifts into your laptop or power tools, it can short them out instantly. Wear a mask, grab some goggles, and keep a vacuum running.
Making the Bond Stick Don’t just slap some glue on a CFRP rod and hope for the best; it’ll peel right off. To get a joint that actually holds, you’ve got to prep the surface.
Scuff it up: Take some 220-grit sandpaper and knock that shiny resin finish off. You want a dull, "toothy" surface so the glue has something to grab onto.
Strip the grease: One fingerprint can ruin a bond. Wipe the area down with isopropyl alcohol until it’s bone-dry and squeaky clean.
Use the good stuff: Forget the superglue. You need a serious two-part epoxy like Araldite or Loctite. Mix it well, apply it thin, and let it cure fully. Once that stuff sets, the rod will usually snap before the bond ever lets go.
7. Industry Applications of Carbon Fiber Rods
From high-tech industrial gear to everyday sports equipment, carbon fiber rods are used in almost every field today.
Aerospace and Defense
Unmanned Aerial Vehicles (UAVs) heavily depend on 5mm carbon fiber rods and 8mm carbon fiber rods to build their primary airframes. Weight is the enemy in flight. By cutting down the structural mass, these rods allow drones to stay in the air much longer and carry heavier specialized sensors or payloads without straining the motors.
Sports and Leisure
Performance in sports often comes down to "snap-back" or elastic memory. Carbon fiber excels here. Whether it's the shaft of an archery arrow or a high-end kite frame, the material returns to its original shape almost instantly after bending. This unique energy transfer is why a carbon fiber stick feels so much more responsive than fiberglass or wood.
Civil Engineering
Concrete structures don't last forever, especially in salty coastal air where steel rebar tends to rust and expand. That’s where CFRP rods come in. Engineers now use them for "near-surface mounted" (NSM) reinforcement. It’s a smart, non-corrosive alternative that strengthens old bridges and buildings without adding the bulk or the maintenance headaches of traditional metal.
8. Real Talk: Carbon Fiber FAQs
Q: Can I just tap some threads into a standard rod?
A: Look, you can, but you really shouldn’t. It’s a recipe for disaster. Carbon fiber gets all its muscle from those long, unbroken strands running end-to-end. The second you start cutting threads into it, you’re basically hair-cutting those structural fibers into tiny, useless bits. The result? A rod that’ll likely splinter or just snap the moment you put any real weight on it. If you need a threaded connection, don't DIY it—either grab a factory-made carbon fiber threaded rod or, better yet, epoxy a metal insert onto the end. Your project (and your safety) will thank you.
Q: Wait, does carbon fiber actually conduct electricity?
A: This is the one that catches people off guard. Yes, it’s a massive conductor. People see the sleek, plastic-like finish and think it’s an insulator. Big mistake. Think of carbon fiber sticks as a bundle of tiny wires waiting for a current. If you’re building a drone or working around high-voltage gear, treat it like an uninsulated copper bar. One stray wire touching that frame and—pop—you’ve got a fried circuit board or a very expensive fire on your hands. Keep it far away from open power lines.
Q: Is a square rod tougher than a round one?
A: It’s all about the "flex." If you're trying to stop a frame from bowing or sagging, a carbon fiber square rod is an absolute beast—those flat sides don't like to budge. But there's a catch. Square profiles hate being twisted. If your build is going to deal with a lot of torque or "wringing" motions, stick with a round rod. Round shapes distribute that twisting stress much more evenly, whereas a square one might crack at the corners if you push it too hard.
9. Conclusion: Selecting the right carbon fiber rods?
The emergence of pultruded carbon fiber rods has had a profound impact on both DIY enthusiasts and other industries. From the toothpick-thin 2mm carbon fiber rod that barely weighs a gram to the rock-solid 8mm carbon fiber rod, these materials are basically the "super-steel" of the future.
So, ready to level up? When it comes to your build, cutting corners on materials is never a good look. Don't just settle for any random carbon fiber rods for sale you find in a bargain bin. Invest in high-quality CFRP rods that actually deliver the muscle and precision your hard work deserves. Trust us—your project will thank you later.
