Solid Fiberglass Rebar Frp Flexible

short description:

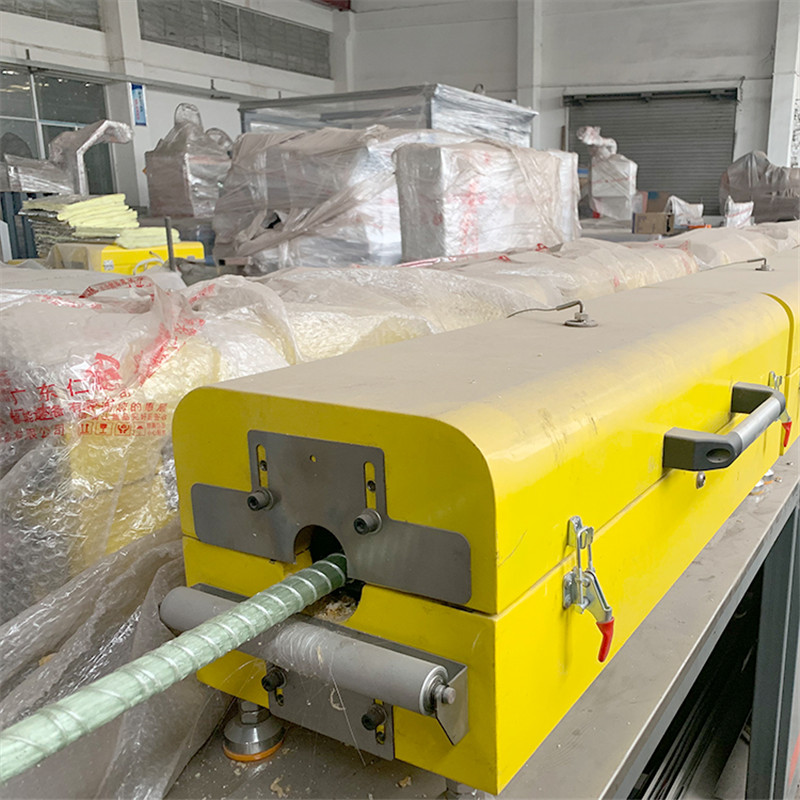

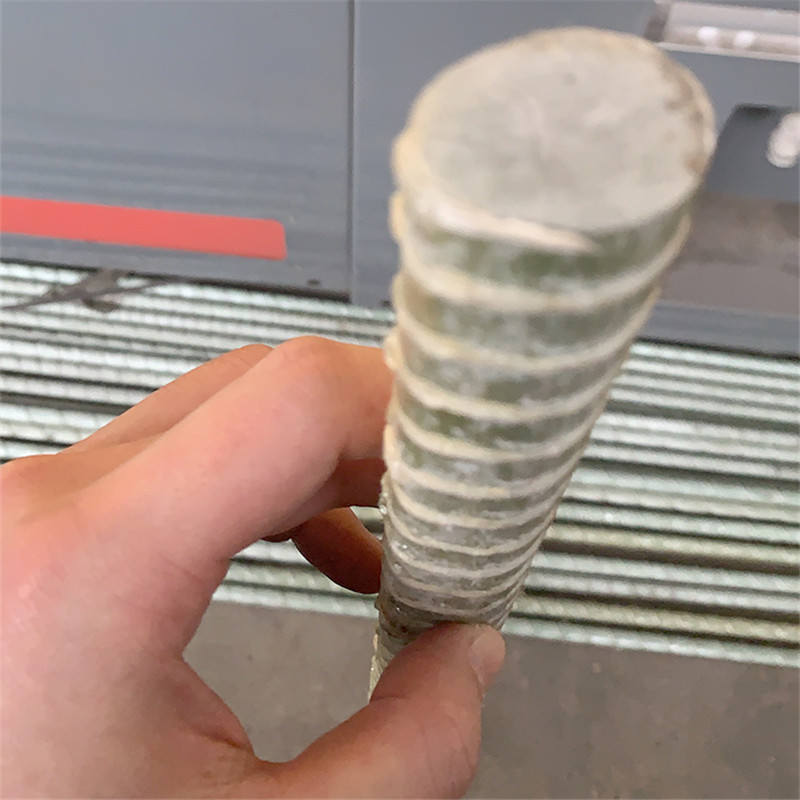

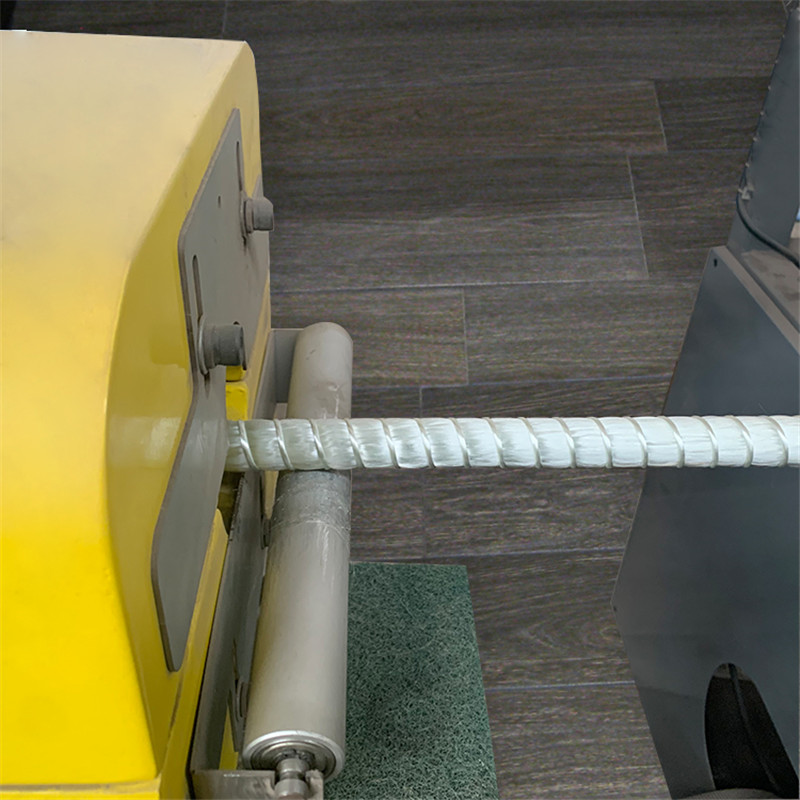

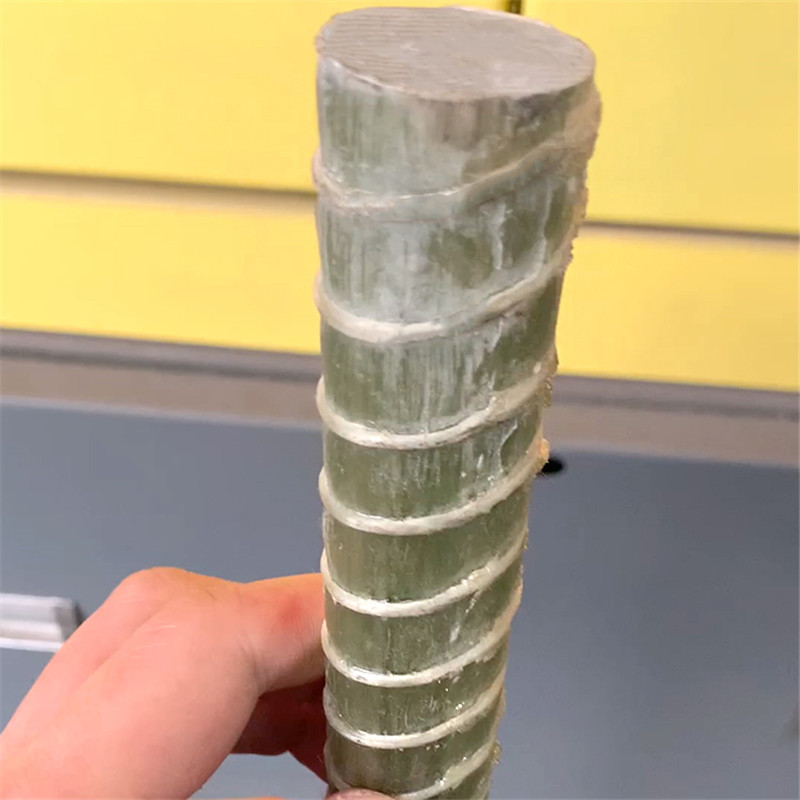

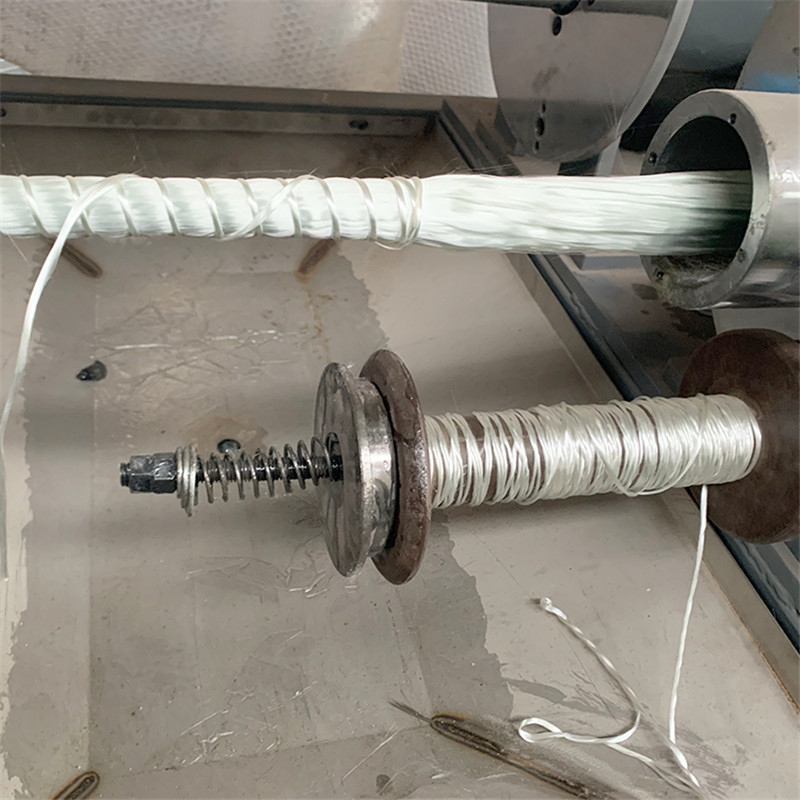

Fiberglass Rebar:Fiberglass rebar is a new kind of composite material, which is glass fiber, basalt fiber, carbon fiber as a reinforcement material, combines with epoxy (resin) and curing agent, then through the Molding process.


Product Detail

Product Tags


PROPERTY

•High corrosion resistance:The fiberglass used by the rebar is a durable material, and they are molded through the composite process. The life span is up to 100 years. They can be used as permanent support materials.
•A high tensile strength:The load is approximately double that of a steel bar with the same diameter
•Low weight:The weight is only 1/4 that of a steel bar with the same diameter, therefore, the labor intensity is greatly reduced, and the transportation cost is reduced at the same time.
•Anti-static:It has no electrical conductivity, and no sparks will be produced when being cut, it's particularly suitable for high gas zones.
• Non-flammable:It's non-flammable and has high thermal isolation.
•Cuttability:It avoids damages to cutter heads and does not delay excavation.
•Save cost:Use this material as reinforcing bars for roads and bridges, could reduce secondary repair costs.

APPLICATION

Construction, transportation industry, coal mine tunnel, parking structures, half coal roadway, slope support, subway tunnel, rock surface anchoring, sea wall, dam, etc.
•Tunnels and culverts
•Mine tunnel
•Civil Engineering
•Seawall dock
•Military Engineering
•Roads and Bridges
•Airport Runway
•Mountain slope support
•Formwork and reinforced concrete work

Technical Index of GFRP Rebar

Diameter

(mm)

Cross Section

(mm2)

Density

(g/cm3)

Weight

(g/m)

Ultimate Tensile Strength

(MPa)

Elastic Modulus

(GPa)

3

7

2.2

18

1900

>40

4

12

2.2

32

1500

>40

6

28

2.2

51

1280

>40

8

50

2.2

98

1080

>40

10

73

2.2

150

980

>40

12

103

2.1

210

870

>40

14

134

2.1

275

764

>40

16

180

2.1

388

752

>40

18

248

2.1

485

744

>40

20

278

2.1

570

716

>40

22

355

2.1

700

695

>40

25

478

2.1

970

675

>40

28

590

2.1

1195

702

>40

30

671

2.1

1350

637

>40

32

740

2.1

1520

626

>40

34

857

2.1

1800

595

>40

36

961

2.1

2044

575

>40

40

1190

2.1

2380

509

>40

PACKING AND STORAGE

• Carbon fiber fabric could be produced into different lengths,each tube is wound on a suitable cardboard tubes
with inside diameter of 100mm,then put into a polyethylene bag,
• Fastened the bag entrance and packed into a suitable cardboard box.Upon to customer's request,this product could be shipped either with carton packaging only or with packaging,
• Shipping: by sea or by air
• Delivery Detail:15-20 days after receive the advance payment
